From their humble beginnings as primitive hand cannons, firearms have undergone countless transformations to arrive at their modern iterations. Among these developments, the Pinfire system stands out as a remarkable milestone, laying the groundwork for the firearms of today. The invention of Frenchman Casimir Lefaucheux, the Pinfire system was a significant departure from the earlier contributions of Jean Samuel Pauly and Henri Roux, moving away from separate loading procedures towards a self-contained cartridge system.
Jean Samuel Pauly: The Needle-Fire System
Swiss inventor Jean Samuel Pauly is often recognized as the pioneer of the self-contained cartridge, a cornerstone of modern firearms. Pauly's revolutionary contribution to gun technology in the early 19th century was the needle-fire system, which employed a needle to strike an internal primer in the base of the paper cartridge. When the needle pierced the base of the cartridge and struck the primer, it ignited the gunpowder and discharged the bullet.
However, despite its ingenuity, Pauly's needle-fire system had its limitations. The needle mechanism was delicate and susceptible to damage, making it unreliable and complex to produce. Furthermore, the system's paper cartridges were prone to damage from moisture and rough handling, further hampering its widespread adoption.
Henri Roux and the Percussion Cap System
Building on Pauly's groundwork, Frenchman Henri Roux advanced the needle-fire system by introducing the percussion cap system. This system consisted of a small metal cup containing fulminate of mercury, an explosive compound. When struck by the firearm's hammer, the compound would ignite, setting off the main charge of gunpowder.
Roux's percussion cap system was a significant improvement over the flintlock system, increasing the reliability of ignition and enhancing the firearm's performance in damp conditions. However, it still involved a separate loading procedure for the cap, powder, and ball, which was cumbersome and time-consuming.
The Birth of the Pinfire System
Against this backdrop of innovation, Casimir Lefaucheux introduced the Pinfire system in 1835. His revolutionary design integrated the bullet, powder, and an ignition system within a single metallic cartridge. The defining feature of this system was a pin projecting from the side of the cartridge. When the pin was struck by the firearm's hammer, it ignited a primer within the cartridge, causing the main powder charge to explode, propelling the bullet.

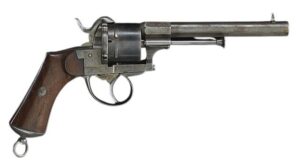

The Pinfire system was adopted in various firearms, including revolvers, rifles, and shotguns. Notably, the Lefaucheux M1858, a revolver adopted by the French Navy and the Union Army in the American Civil War, was one of the most renowned Pinfire firearms. It typically fired 12mm cartridges, but other calibers ranging from 7mm to 15mm were also in use.
Pinfire shotguns, typically in 12, 16, or 20 gauge, were also popular, being easier to load and providing more reliable firing than previous firearm designs.
Performance and Advantages of the Pinfire System
The Pinfire system brought about significant advantages over its predecessors. It was faster to reload, more reliable, and safer than both Pauly's needle-fire system and Roux's percussion cap system. Unlike the needle-fire system, the Pinfire design was less sensitive to rough handling and environmental factors. Compared to the percussion cap system, the Pinfire mechanism eliminated the risk of caps falling off or being lost.
However, the system had its limitations, chiefly stemming from the protruding pin, which interfered with loading and made cartridges difficult to carry in quantity. Also, accidental striking of the pin could lead to unintended discharge, posing a safety risk.
The Legacy of the Pinfire System
Although eventually superseded by the rimfire and centerfire systems, the Pinfire system's influence on modern firearm technology remains undeniable. By proving the feasibility of self-contained cartridges, it charted the course for subsequent developments in firearm design. Even today, as we stand in the era of cutting-edge firearm technology, the pioneering spirit of Casimir Lefaucheux, and the innovation of the Pinfire system, echo in every firearm that uses self-contained ammunition.
