The Morse Carbine stands as one of the most remarkable yet overlooked innovations of the American Civil War. Developed in the crucible of national conflict, this unique breechloading firearm marked a bold leap forward in military arms—embracing the concept of metallic cartridges years before it became standard. While it never reached widespread deployment, the Morse Carbine’s technological achievements prefigured modern breechloading systems and metallic ammunition that would later dominate global warfare. To fully appreciate its significance, one must explore the ingenuity of its inventor, the technical specifics of the weapon, its military trials and tribulations, and its enduring legacy in the history of American arms development.
Inventor: George W. Morse and the Future He Saw
The Morse Carbine owes its origin to George Washington Morse (1816–1906), a New Hampshire-born inventor and arms innovator. Morse was a man far ahead of his time, holding multiple patents related to breechloading and cartridge technology. His key insight—long before the metallic cartridge became standard—was that self-contained ammunition could solve numerous battlefield problems: it simplified loading, sealed the breech against gas blowback, and allowed for more rapid and reliable fire.
Morse first applied his metallic cartridge concept to a carbine design in the late 1850s, patenting his system in 1856 (U.S. Patent No. 15,999). His invention centered on a reusable brass cartridge with a central percussion cap—what we would now recognize as an early form of centerfire ammunition. Unlike the paper or linen cartridges common in the era, Morse’s design promised durability, weather resistance, and ease of use. It was radical in both theory and practice.
Technical Description: Breechloading and Brass Ingenuity

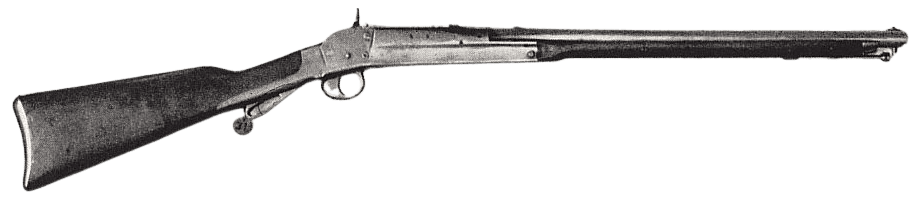

The Morse Carbine was a single-shot, .50 caliber weapon using a tilting breechblock system. The breech hinged upward and forward—similar in principle to the later British Martini-Henry—though Morse’s design predated it by more than a decade. The rifle was loaded by lowering the breechblock, inserting the cartridge, and then closing the action, which was secured by a locking cam mechanism. An external hammer struck a firing pin, which in turn ignited the percussion cap inset into the head of the brass cartridge.
The Morse cartridge itself was revolutionary. Constructed of drawn brass, it was reloadable and durable. The cap was inserted into a central cavity at the base of the casing. When fired, the walls of the cartridge expanded against the chamber walls, effectively sealing the breech against gas leakage—an early example of obturation in metallic cartridge design.
The standard Morse Carbine barrel was around 20 to 21 inches in length, with a 3-groove rifling pattern. The weapon was light, fast to operate, and required minimal cleaning compared to its percussion-muzzleloading contemporaries. The lock was a simple percussion-style sidehammer design, robust and easy to maintain in the field.
Southern Adoption: Morse in Confederate Service
Despite its Northern inventor, the Morse Carbine would ironically see its only real production in the Confederacy. Morse, who had relocated to South Carolina before the Civil War, offered his design to the Confederate government after secession. His offer was eagerly accepted due to the South’s urgent need for firearms and its limited manufacturing capacity.
Production was centered at the South Carolina State Military Works in Greenville. From 1862 through late 1864, somewhere between 1,000 to 1,300 Morse Carbines were reportedly produced, though only several hundred were actually issued. Due to wartime resource constraints, manufacturing suffered from irregular parts, inconsistent metallurgy, and shortages of critical materials such as copper and brass for cartridge cases.
The carbines were mainly issued to Confederate cavalry units, where the advantages of breechloading and rapid reload were most appreciated. However, the rarity of replacement parts, difficulties in supplying metallic cartridges, and Confederate logistical limitations hampered the weapon’s full potential. Units such as the South Carolina cavalry used them with success in skirmishing and scouting actions, where rate of fire and reliability were paramount.
Ammunition: Reloadable Brass in the Age of Paper
The Morse brass cartridge was among the first reloadable metallic cases used in military service. Each case was a marvel of its time—reusable, relatively gas-tight, and sturdy. Soldiers in the Confederate ranks were expected to clean and reload their spent cases, with kits provided for recapping and repacking powder and bullets. This practice was decades ahead of its time, resembling modern handloading more than any typical 1860s battlefield process.
The bullet was a conical lead projectile, often greased, seated over a black powder charge. Though the .50 caliber Morse cartridge was not standardized in the modern sense, ballistics were respectable—typically producing muzzle velocities in the 900–1,100 feet per second range, depending on powder load and barrel condition.
Challenges and Decline
Despite its conceptual brilliance, the Morse Carbine was ultimately a technological outlier—too advanced for its time and too difficult to manufacture under the industrial conditions of the Confederacy. The reloadable cartridge system was more complex than standard muzzleloaders or even the simpler percussion carbines like the Sharps, Gallagher, or Burnside. The weapon demanded precision machining and high-grade materials, both in short supply in the South.
Moreover, troops and quartermasters were unfamiliar with maintaining metallic cartridge weapons, and supply chains were ill-equipped to deliver replacement cartridges or tools for reloading. For Confederate units used to patching up paper cartridges and cutting percussion caps, the Morse system represented both an opportunity and a logistical nightmare.
After the war, the Morse Carbine faded into obscurity. Surviving examples were often lost, scrapped, or forgotten in the flood of surplus arms. Morse himself continued to innovate, working on cartridge and firearm patents for years, but he never again achieved the prominence of his Civil War-era breakthrough.
Surviving Examples and Collectibility
Today, Morse Carbines are rare and highly sought-after by collectors of Civil War firearms and early breechloaders. Surviving specimens are typically marked “State Military Works” and bear serial numbers under 1300. Some have survived in remarkable condition, often accompanied by a few original cartridges—making them among the earliest extant examples of centerfire cartridge ammunition in America.
The action is robust, and modern shooting tests with reloaded Morse cartridges (in controlled environments) have demonstrated the functionality of the design, even 160 years later. These weapons represent a transitional moment in firearms development: bridging the age of muzzleloaders and the dawn of the metallic cartridge breechloader.
Historical Legacy: Far More Than a Confederate Curiosity
The Morse Carbine deserves to be remembered not merely as a Confederate oddity, but as a legitimate precursor to modern firearms. Its central-fire metallic cartridge predates the widespread adoption of the metallic case by at least a decade. It influenced the thinking that would later lead to the widespread use of metallic centerfire cartridges, tilting breech mechanisms, and reloadable cases.
Though the Morse was limited by its context—manufactured in a resource-strapped South and issued to under-supplied units—it stands as a testament to American ingenuity. It is, arguably, the first military rifle in U.S. service designed from the ground up around a metallic cartridge.
The Morse Carbine challenges the myth that innovation must always be adopted quickly or widely to be impactful. Like many great inventions, it planted a seed. Others—Spencer, Martini, Remington, Peabody, and eventually Mauser—would later build their legacies on the same principles Morse outlined before the firing on Fort Sumter.
Key Specifications
| Feature | Morse Carbine Specification |
|---|---|
| Caliber | .50 (varied slightly by production run) |
| Cartridge Type | Reloadable drawn brass, centerfire percussion cap |
| Action | Tilting breechblock (top-hinged) |
| Operation | Single-shot, manually loaded |
| Firing Mechanism | External hammer with firing pin |
| Barrel Length | Approx. 20–21 inches |
| Rifling | 3-groove |
| Total Length | Approx. 37 inches |
| Weight | ~7.5 pounds |
| Manufacturer | South Carolina State Military Works (Confederacy) |
| Production Estimate | ~1,000 to 1,300 units |
| Service | Confederate cavalry, 1862–1865 |
Conclusion
The Morse Carbine was a technical marvel of the Civil War, tragically underappreciated in its own time. George W. Morse’s innovation laid the groundwork for the centerfire metallic cartridge, decades ahead of its mass adoption. Though limited in numbers and hampered by wartime scarcity, the weapon showcased what was possible when visionary design met battlefield necessity. It is not just a curiosity of Confederate arms, but one of the most significant technical advancements in 19th-century military small arms. Its story is one of foresight, experimentation, and the hard truths of war—where even the best ideas sometimes arrive too early to change their moment, but just in time to change the future.
