The Volcanic Pistol: How a Gun That Couldn't Kill a Rabbit Created Winchester and Smith & Wesson

Two of the most iconic names in American firearms history — Winchester and Smith & Wesson — share a single origin point. Not a common era or a common city, but a single failed company that produced handguns so underpowered they generated roughly the muzzle energy of a modern air rifle. The Volcanic Repeating Arms Company lasted barely two years, burned through its investors' money, and produced firearms — the Volcanic pistol — that nobody particularly wanted to buy. And yet, without it, the lever-action rifle as we know it would not exist, the Henry rifle would never have been built, and Oliver Winchester would have spent his life selling shirts.

That's the kind of history worth knowing.

Walter Hunt and the Worst Great Idea in Firearms History

Every story has a beginning, and this one starts in 1848 with a New York inventor named Walter Hunt. Hunt was one of those restless, brilliant minds that the nineteenth century seemed to produce by the dozen — he also invented the safety pin and an early sewing machine, among other things. His contribution to firearms was the "Volition Repeating Rifle," and it was simultaneously revolutionary and completely impractical.

The Volition Rifle incorporated a tubular magazine beneath the barrel and a complex mechanism operated by two levers and linkages. But the real innovation was the ammunition. Hunt developed what he called the "Rocket Ball" — a hollow-base bullet with the powder charge contained inside the bullet's own cavity, sealed at the base with a cork cap. No separate cartridge case. The bullet was the cartridge.

Think about what that meant in 1848. The percussion cap had only been around for a couple of decades. Most military arms were single-shot muzzleloaders. And here was Hunt proposing a self-contained round that could feed from a magazine into a repeating action. The concept was genuinely ahead of its time. The execution, however, was a disaster.

The tiny cavity inside a hollow-base bullet could hold almost no powder. The mechanism was fragile and essentially unworkable. Hunt built a couple of prototypes, and they were just barely functional. The sole known surviving example sits today in the Cody Firearms Museum at the Buffalo Bill Center of the West in Cody, Wyoming — a fitting resting place for a gun that pointed toward the future but couldn't get there on its own.

From Hunt to Jennings to Smith: The Design Evolves

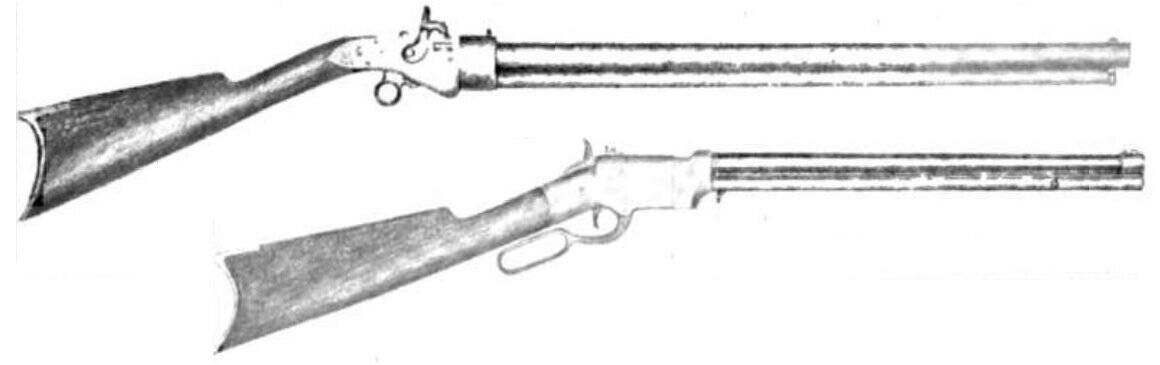

A businessman named Courtlandt Palmer purchased Hunt's patents in 1849 and handed the project to Lewis Jennings, who simplified and improved the action into something that could actually be manufactured. Jennings added a built-in magazine of percussion caps for more reliable ignition and cleaned up the operating mechanism considerably. Robbins & Lawrence of Windsor, Vermont produced approximately 1,000 Jennings rifles between 1849 and 1852, but the fundamental problem remained: the Rocket Ball ammunition was woefully underpowered. Sales were abysmal, and production stopped.

Palmer wasn't done yet. He hired a skilled mechanic named Horace Smith to further improve the Jennings design, which led to the Smith-Jennings patent of 1851. Smith recognized both the potential and the limitations of what Hunt and Jennings had started. What he needed was a partner.

Smith & Wesson — The First Time Around

In 1852, Horace Smith and Daniel Baird Wesson formed a partnership in Norwich, Connecticut. By 1854, they had formalized the arrangement with Courtlandt Palmer as the Smith & Wesson Company. Their goal was straightforward: build a practical lever-action repeating pistol that used self-contained ammunition.

Working alongside them was a young mechanic named Benjamin Tyler Henry, who contributed to refining both the action and the ammunition. Remember that name.

Smith and Wesson made two critical improvements. First, they developed the toggle-link lever action — a more robust and elegant mechanism than anything Hunt or Jennings had produced. Second, they improved the Rocket Ball ammunition by adding a percussion priming cap to the base seal, making it a true self-contained, self-priming cartridge. They called it the "Volcanic" cartridge.

The Norwich factory turned out roughly 1,700 iron-frame lever-action pistols during its approximately seventeen months of operation. They were clever guns. They were also still firing ammunition that couldn't reliably stop a determined raccoon, and the venture was not making money. By 1855, new investors were needed — and one of them was about to change everything.

Oliver Winchester: The Shirt Maker Who Smelled Opportunity

Oliver Fisher Winchester was not a gun man. He was a shirt manufacturer — and a very successful one — based in New Haven, Connecticut. But to understand what Winchester brought to the firearms industry, you need to understand where he came from, because his path to the Volcanic Repeating Arms Company was anything but inevitable.

Winchester was born on November 30, 1810, in Boston, Massachusetts. His father, Samuel Winchester, died in April 1811 — roughly four months after Oliver's birth — leaving his mother Hannah to raise the children alone. Oliver went to work on the family farm at age six. By fourteen, he had apprenticed himself to a carpenter. There was no inheritance, no family business to fall back on. Everything Oliver Winchester eventually built, he built from nothing.

He worked his way up from carpentry to construction supervision, and by 1830 he was managing building projects in Baltimore, Maryland. Somewhere in Baltimore he developed a merchant's eye for the clothing trade, and he shifted into men's furnishings. In 1848, at age thirty-eight, Winchester moved to New Haven, Connecticut, patented a new style of men's dress shirt, and partnered with John M. Davies to form the Winchester & Davies shirt manufacturing company.

The shirt business was a revelation. Winchester applied the same principles that would later define his firearms empire — standardized production, quality control, and relentless efficiency. By 1860, his New Haven factory was running 400 sewing machines and operators, turning out 800 dozen shirts per week. In roughly a decade, the company had gone from startup to grossing $300,000 annually — serious money in antebellum America. Winchester understood manufacturing at scale, and he understood how to make money doing it.

He also understood Connecticut's manufacturing culture. New Haven and the Connecticut River Valley were the cradle of American precision manufacturing — the arms makers of Hartford, the clock makers of Waterbury, the brass mills of the Naugatuck Valley. Winchester had positioned himself in the middle of one of the most concentrated pools of mechanical talent on earth. When the Smith & Wesson Company's struggles presented an investment opportunity, Winchester didn't see a failed gun venture. He saw valuable patents, a sound mechanism, a solvable ammunition problem, and a factory full of skilled machinists. The man wasn't just investing money. He was investing a lifetime of manufacturing experience.

In 1855, Winchester and other investors reorganized the company, renamed it the Volcanic Repeating Arms Company, and relocated operations to New Haven. Oliver Winchester became the principal financier. Smith and Wesson stayed on, at least initially, but the power had shifted.

Winchester also moved into politics — he served as a New Haven City Commissioner, as a Republican Presidential elector in 1864, and as Lieutenant Governor of Connecticut from 1866 to 1867. He died on December 11, 1880, at age seventy, in New Haven. His son William Wirt Winchester died of tuberculosis just three months later in March 1881. William's widow, Sarah Winchester, inherited roughly $20 million and nearly half of the Winchester Repeating Arms Company stock. She moved to San Jose, California, where she purchased a farmhouse and spent the next thirty-six years expanding it into the sprawling, architecturally bizarre mansion now known as the Winchester Mystery House — 161 rooms, staircases that lead to ceilings, doors that open onto walls. Popular legend claims she built it to appease the spirits of those killed by Winchester rifles, though people who actually knew her described Sarah as sharp-witted and not particularly superstitious. Either way, the Mystery House remains one of the strangest footnotes in American industrial history.

The Volcanic Repeating Arms Company: Beautiful Guns, Terrible Bullets

The Volcanic Repeating Arms Company produced some of the most fascinating firearms of the 1850s. They were genuinely innovative repeating arms with a sleek, distinctive appearance — the gunmetal (bronze/brass alloy) frames gave them a golden color that turned heads. The same alloy used on the Volcanic pistol would later appear on the Henry rifle and the Winchester Model 1866 "Yellow Boy." These guns looked like the future.

The Pistol Lineup

Volcanic offered pistols in two calibers across several configurations:

The No. 1 Pocket Pistol was the small-frame model, chambered in .31 caliber with a barrel advertised at 4 inches (actual measurements run between roughly 3-9/16" and 3-11/16" from breech face to muzzle). It held 6 rounds in its tubular magazine. This was their concealment piece — a gentleman's pocket gun for an era when gentlemen sometimes needed one.

The No. 1 Target Pistol used the same small .31 caliber frame but stretched the barrel to 6 inches.

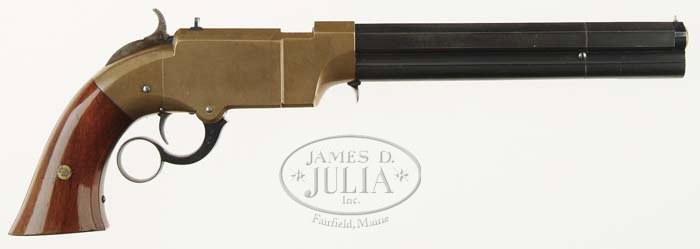

The No. 2 Navy Pistol (also called the Belt Pistol) stepped up to .41 caliber on a larger frame with a 6-inch barrel and 8-round capacity. This was the serious defensive arm — or would have been, if the ammunition had been up to the task.

The No. 2 Navy Holster Pistol was the biggest handgun in the lineup: .41 caliber, 8-inch barrel, 10 rounds. It was an impressive-looking firearm and the most common of the Navy variants.

All barrels were octagonal in profile — a distinctive and attractive touch that added manufacturing cost but gave the guns a quality look.

What They Were Like in the Hand

Pick up a Volcanic pistol and the first thing you notice is the frame — that warm, golden gunmetal alloy, heavier than you'd expect, with a density and heft that iron-frame guns of the period didn't have. The Navy Holster Pistol, at roughly 15 inches overall and about two and a half pounds, felt substantial. The engraving on many frames featured plant motifs along the flats, giving the guns an almost decorative quality that belied their intended purpose.

The left side of the frame carried the company markings — "VOLCANIC REPEATING ARMS CO. NEW HAVEN, CONN. PATENT FEB. 14, 1854" on Volcanic-marked examples, or "NEW HAVEN ARMS CO. NEW HAVEN, CT." on later production. Serial numbers were stamped on the frame as well, running sequentially across all models regardless of type. A pocket pistol might carry serial number 200, and the very next gun off the assembly line — a Navy pistol or a carbine — would be 201.

Loading the Volcanic pistol was straightforward but required a specific procedure. The tubular magazine ran beneath the barrel, and rounds were loaded through the front of the magazine tube after the spring-loaded follower was pulled forward and locked out of the way. You'd drop the Rocket Ball cartridges into the magazine nose-first, one at a time, release the follower, and the spring would press them rearward toward the action. Cycle the lever to chamber the first round, and you were ready to fire.

Firing a Volcanic pistol was underwhelming. The report was more of a pop than a bang — nothing like the authoritative crack of a Colt revolver loaded with a full percussion charge. The recoil was negligible, which sounds like a feature until you realize it was negligible because the round carried almost no energy. At close range, the .41 caliber ball would penetrate a pine board. At any meaningful distance, accuracy fell off sharply and the projectile arrived with so little velocity that its usefulness as a defensive weapon was genuinely questionable. The Volcanic pistol was a fascinating machine that happened to throw bullets with the enthusiasm of a tired slingshot.

The Carbines

Volcanic also produced carbines in .41 caliber, and the magazine capacities were remarkable for the period. The 16-inch barrel model held 20 rounds. The 20-inch held 25. The 24-inch barrel carbine packed 30 rounds into its tubular magazine — a staggering amount of firepower on paper, even if each individual round hit with all the authority of a harsh word.

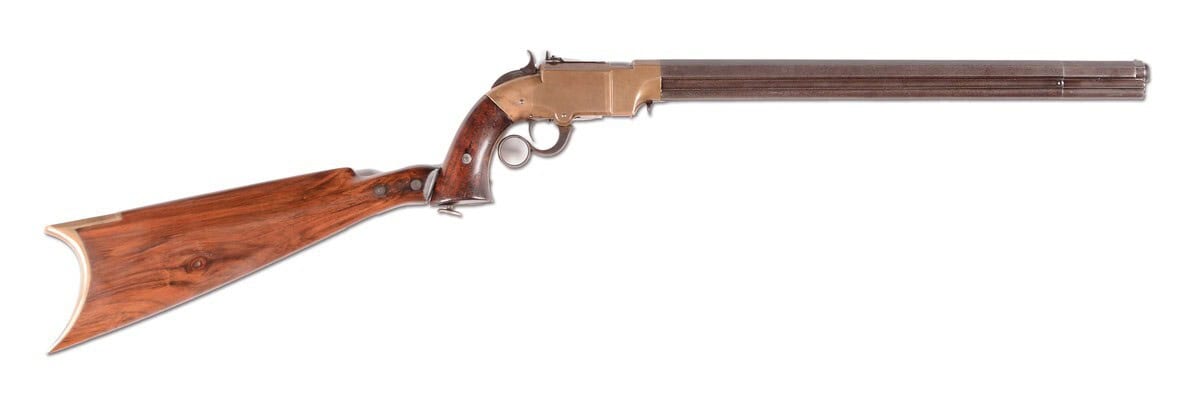

There was also a pistol-carbine variant — a handgun with a detachable shoulder stock — but these are extraordinarily rare today, with estimated production of perhaps 100 to 300 units.

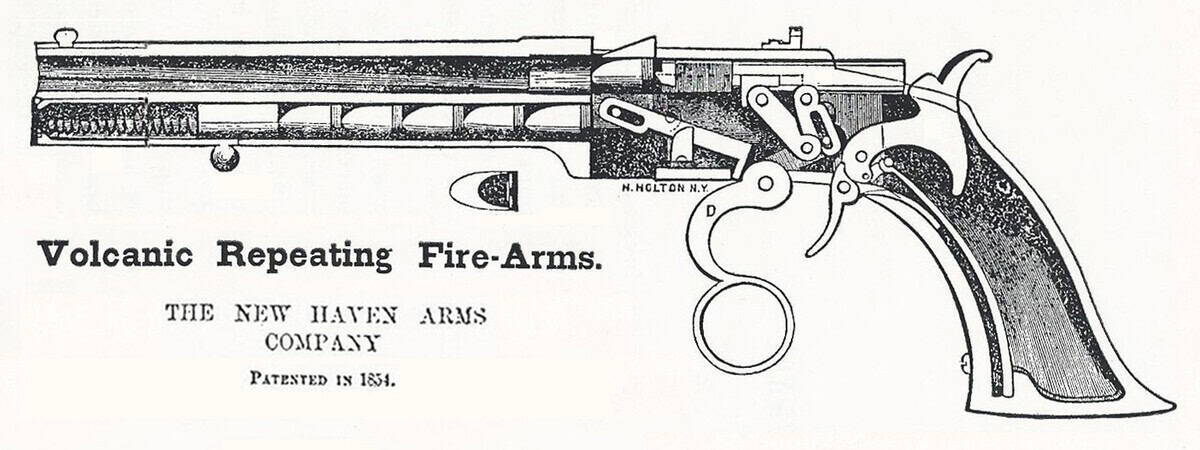

The Toggle-Link Action: Engineering Ahead of Its Ammunition

The mechanism itself was genuinely brilliant. The toggle-link lever action worked like a human knee joint. Throwing the lever down collapsed the toggle, sliding the breech block rearward. At the end of that stroke, a cartridge lifter raised a fresh round from the tubular magazine into position. Pulling the lever back pushed the breech block forward, chambering the round, and cammed the toggle past center into a mechanically locked position.

The rear of the toggle joint was anchored by a pin through a shoulder milled into the receiver. The forward link connected to the breech block. In the locked position, the links sat slightly past center, creating a positive lock that was more than adequate for the low pressures of the Volcanic cartridge.

This was the action — refined but fundamentally the same — that would go on to power the Henry rifle, the Winchester 1866, the Winchester 1873 "Gun That Won the West," and the Winchester 1876. The toggle-link concept also influenced Hugo Borchardt's pistol and, through it, Georg Luger's famous P08, though those designs used the toggle mechanism in a very different way. Winchester didn't abandon the toggle-link until John Moses Browning designed the Model 1886 with a stronger vertically-sliding lock that could handle big-bore cartridges.

The Volcanic pistol's action was never the problem. The action was decades ahead of the ammunition feeding it.

The Ammunition Problem — In Hard Numbers

Here's where the whole enterprise fell apart. The .41 caliber Volcanic cartridge packed approximately 6.5 grains of black powder behind a 100-grain projectile. The result was roughly 56 foot-pounds of muzzle energy.

Fifty-six foot-pounds. For perspective, a .22 Long Rifle generates around 140 foot-pounds. A modern premium air rifle in .22 caliber can match or exceed the Volcanic's energy. The Volcanic pistol produced less than half the energy of a round universally considered marginal for self-defense.

For further context, the .44 Henry rimfire cartridge that Benjamin Tyler Henry would develop just five years later used a 28-grain powder charge to push a 200-grain bullet at 1,125 feet per second — more than four times the Volcanic's energy from the same basic action.

Beyond the raw ballistic inadequacy, the Rocket Ball ammunition had other serious problems. Misfires were common. Gas leaked at the breech. The rounds fouled the barrel rapidly. And there was no extraction mechanism for misfired or squib rounds — meaning a dud round could leave you with an expensive, lever-shaped paperweight at the worst possible moment.

A repeating pistol that can't reliably fire, can't clear malfunctions, and can't incapacitate a target when it does fire is not a viable commercial product. The market agreed.

Collapse and Divergence: Two Giants Born from One Failure

By late 1856, the company behind the Volcanic pistol was insolvent. The guns were clever, the mechanism was sound, and absolutely nobody was buying them in sufficient numbers because the ammunition was a joke. Most investors headed for the exits.

Among those departing were Horace Smith and Daniel B. Wesson themselves. They had seen the future of firearms, and it wasn't the Rocket Ball — it was the metallic cartridge. They had their eyes on something else entirely.

The Smith & Wesson Branch — and the Rollin White Patent Wars

In November 1856, Smith and Wesson formed their second partnership, this time in Springfield, Massachusetts. They licensed Rollin White's patent for the bored-through cylinder — a design that allowed a revolver cylinder to be loaded from the rear with self-contained metallic cartridges — for an exclusive royalty of 25 cents per gun.

White had received Patent No. 12,648 on April 3, 1855, for what he called an "Improvement in Repeating Fire-arms." The patent itself covered a completely unworkable revolver design that never went into production. But buried in the patent language was the critical claim: a cylinder bored through end to end. White had offered the patent to Samuel Colt first. Colt turned it down, reportedly failing to see the significance. Smith and Wesson did not make that mistake.

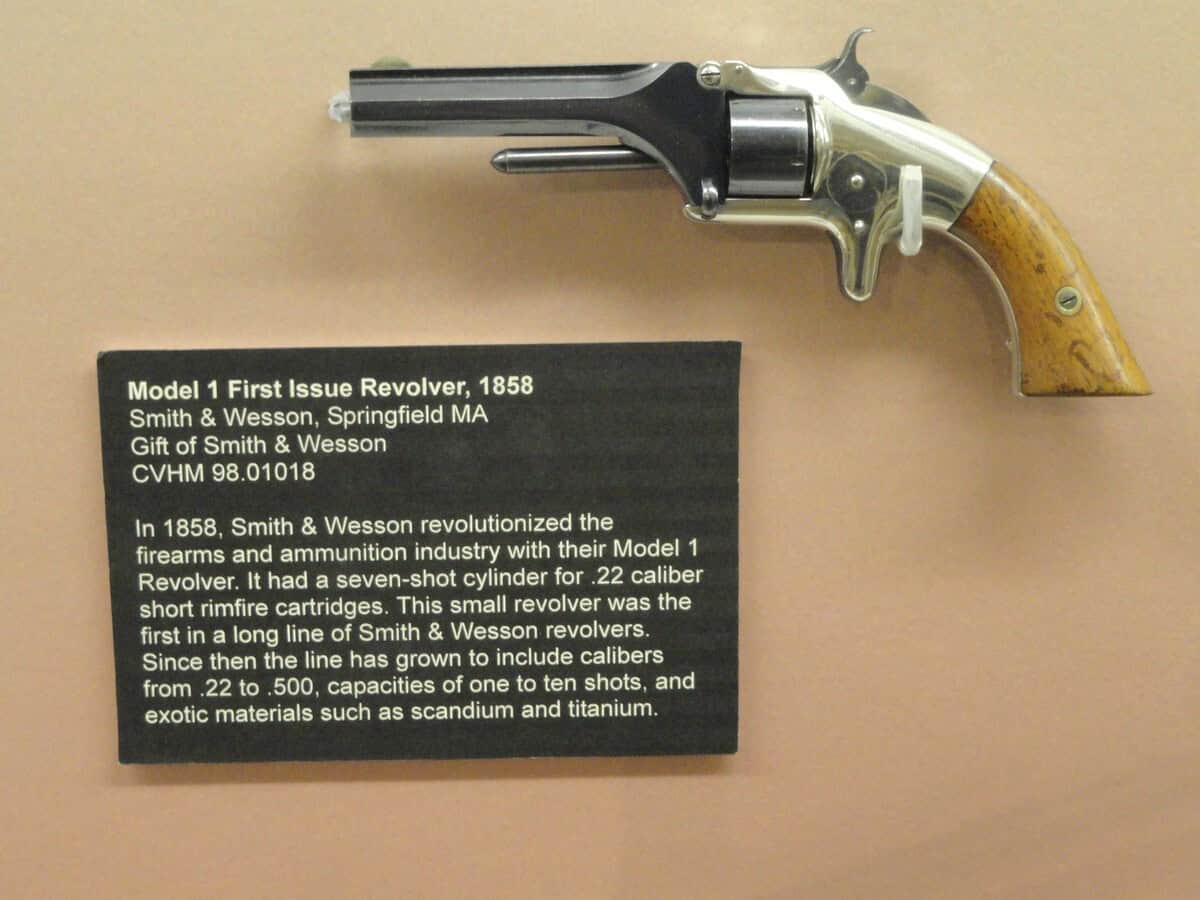

In 1857, they introduced the Smith & Wesson Model 1, the first commercially successful revolver firing rimfire metallic cartridges. The Rollin White patent gave S&W an ironclad monopoly on cartridge revolvers — and they enforced it ruthlessly.

Every competitor who tried to manufacture a metallic-cartridge revolver with a bored-through cylinder got sued. White and S&W brought infringement cases against Manhattan Firearms Company, Allen & Wheelock, Lucius W. Pond, Merwin & Bray, National Arms Company, and others. The courts consistently sided with White. Some manufacturers were forced to mark their post-lawsuit revolvers "MANUF'D FOR SMITH & WESSON" — an extraordinary humiliation stamped right into the steel.

The patent monopoly drove competitors to bizarre workarounds. Daniel Moore and David Williamson designed the "teat-fire" revolver in 1863 — a .32-caliber six-shooter where the cartridge's primer protruded through a tiny hole in the back of the cylinder rather than requiring a bored-through chamber. Moore sold more than 30,000 of these oddities before production ended in 1870, making the teat-fire the most commercially successful patent evasion of the lot. Plant's Manufacturing Company went a different route with cup-primed front-loading cartridges. Others tried multiple-barrel designs or removable chambers. All of it was an elaborate dance around one patent.

The monopoly finally ended when White's patent expired in 1869 and a third extension was refused. The floodgates opened. Colt — which had been locked out of the metallic cartridge revolver market for fourteen years — introduced the 1871-72 Open Top and then, in 1873, the Single Action Army, which became the most famous revolver of the American frontier. Remington, Merwin Hulbert, and a dozen other makers rushed in behind them. The modern revolver industry as we know it dates from the expiration of Rollin White's patent.

This second Smith & Wesson partnership — born directly from the ashes of the Volcanic venture — is the Smith & Wesson we know today. The company that would go on to produce the Model 10, the Model 29 .44 Magnum, the Military & Police line, and generations of service revolvers and pistols traces its lineage straight back to a failed lever-action pistol company in New Haven.

The Winchester Branch

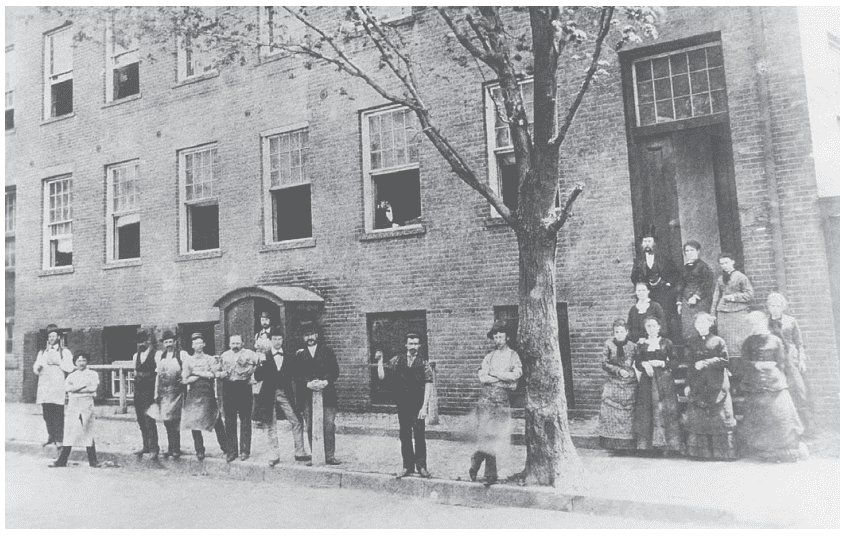

Oliver Winchester didn't run. While everyone else saw a failed investment, Winchester saw an opportunity. He acquired the company's assets and in April 1857 reorganized the operation as the New Haven Arms Company, with himself in control. He brought back Benjamin Tyler Henry as plant superintendent.

The New Haven Arms Company continued producing Volcanic pistol variants — roughly 850 No. 1 Pocket Pistols and approximately 3,370 total units — while Henry worked on the real project. Winchester understood that the mechanism was sound. He just needed someone to solve the ammunition problem.

Benjamin Tyler Henry and the Breakthrough

Henry was the right man. He had been there from the Norwich days, working alongside Smith and Wesson on the original design. He understood the toggle-link action intimately. And he understood that the Rocket Ball had to go.

Benjamin Tyler Henry was born on March 22, 1821, in Claremont, New Hampshire — a town with manufacturing in its bones. His grandfather, Colonel Benjamin Tyler, had come to Claremont from Connecticut in 1767 and became the town's first millwright, building multiple successful mills and inventing the wry-fly water wheel. Mechanical aptitude ran in the family.

Henry apprenticed to a gunsmith as a young man and worked his way up to shop foreman at Robbins & Lawrence in Windsor, Vermont — the same company that had manufactured the Jennings rifles. That's where he first encountered the Volition/Jennings action and first worked alongside Horace Smith and Daniel Wesson on what would become the Volcanic repeater. Henry was there for the entire evolution — Hunt to Jennings to Smith-Jennings to Volcanic — and nobody alive understood the toggle-link mechanism better.

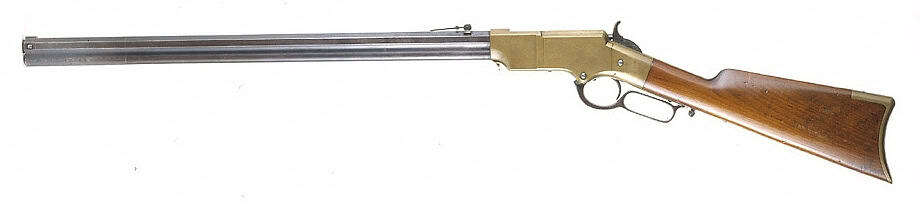

On October 16, 1860, Henry received U.S. Patent No. 30,446 for his lever-action repeating rifle using a .44 caliber rimfire metallic cartridge — a proper brass-cased round with a real powder charge. The Volcanic's toggle-link action, refined and strengthened, finally had ammunition worthy of the mechanism. The result was the Henry rifle, and it changed everything. (If you want to experience this piece of history firsthand, modern reproductions of the original Henry are available here.)

The Henry Rifle Goes to War

The New Haven Arms Company produced approximately 14,000 Henry rifles, and they arrived just in time for the bloodiest conflict in American history. The U.S. Army's Ordnance Department, run by the conservative Brigadier General James Ripley, largely refused to adopt repeating arms — Ripley believed soldiers would waste ammunition. Only about 1,700 Henry rifles were officially purchased by the federal government and issued to troops, primarily the 1st Maine Heavy Artillery and the 1st District of Columbia Cavalry.

But soldiers knew better than the bureaucrats. A Henry rifle cost $42 at retail — more than three months' pay for a Union private earning $13 a month. Thousands of soldiers bought them anyway, many using the $400 reenlistment bounties offered under the 1864 Veteran Volunteer Act. The logic was simple and brutal: a rifle that could fire 16 rounds as fast as you could work the lever was worth more than money if it kept you alive.

The 7th Illinois Volunteer Infantry became one of the most celebrated Henry-armed units in the war. Captain John Alexander Smith of Company E personally secured leave to purchase Henry rifles for his men, buying them at $52.50 apiece and shipping them south. The Henrys arrived just days before the Battle of Allatoona Pass on October 5, 1864, where the 7th Illinois helped repel a Confederate assault on a critical Union supply depot.

The 66th Illinois — known as the Western Sharpshooters — also carried Henrys and used them to devastating effect at the Battle of Atlanta, where they helped recapture the guns of DeGress's Battery at the Troup Hurt house, and at Resaca, where their rapid fire forced a crossing of the Oostanaula River.

Confederate soldiers who faced the Henry had a way of expressing their feelings about it. "That damned Yankee rifle that you load on Sunday and shoot all week" became one of the most quoted lines of the war. A Henry could sustain a rate of roughly 28 rounds per minute — an almost incomprehensible volume of fire to soldiers carrying single-shot muzzleloaders that managed two to three rounds per minute on a good day. Sixteen rounds of .44 rimfire, delivered as fast as a man could work a lever, turned a squad of infantry into a wall of lead. The tactical implications were obvious to everyone except the Ordnance Department.

The Falling Out

Henry and Winchester eventually had a bitter falling out — the kind of dispute that poisons everything it touches and leaves both sides diminished. The core issue was compensation. Henry believed — with considerable justification — that he had never been adequately paid for the rifle design that was making the New Haven Arms Company's fortune. He was the plant superintendent and the patent holder, but Winchester controlled the company.

In 1864, with Winchester temporarily traveling in Europe, Henry made his move. He petitioned the Connecticut state legislature to award him ownership of the New Haven Arms Company, arguing that Winchester had not fairly compensated him for his contributions. It was a bold gamble — and it nearly worked. Winchester's associates in the United States managed to get word to him in Europe, and he rushed home to block the petition. The legislature ultimately denied Henry's claim, viewing it as an overreach beyond normal contractual remedies.

Winchester's countermove was decisive and permanent. He reorganized the New Haven Arms Company into the Winchester Repeating Arms Company in 1866, transferring the key patents and assets into the new corporate entity and effectively neutralizing any future claim Henry might bring. The Henry rifle was redesigned — Nelson King's side-loading gate and a wooden forearm replaced Henry's original barrel-loading magazine — and it became the Winchester Model 1866. Henry's name was scrubbed from the product line.

Henry left the company and spent the rest of his life working as an independent gunsmith. He lived another thirty-two years, dying on June 8, 1898, at the age of seventy-seven. By all accounts he lived a pleasant, quiet life doing the work he loved. But he never received the recognition or the financial reward that his invention merited. His name lives on in today's Henry Repeating Arms Company (no direct corporate connection), but the man himself was largely written out of the Winchester story during his own lifetime.

From New Haven Arms to Winchester: The Legacy Chain

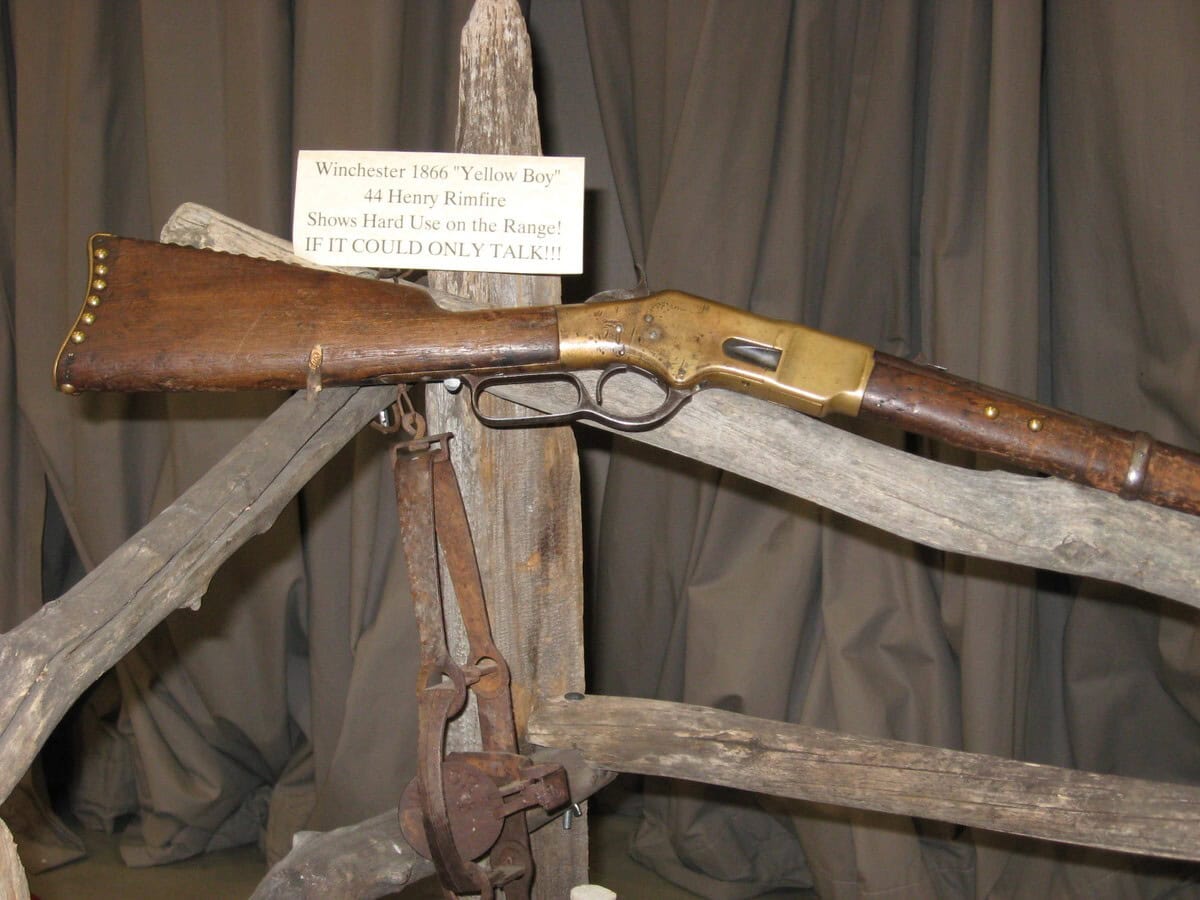

In 1866, Oliver Winchester renamed the New Haven Arms Company as the Winchester Repeating Arms Company and introduced the Model 1866, known as the "Yellow Boy" for its brass receiver — that same gunmetal alloy the Volcanic pistol had used a decade earlier. The 1866 added Nelson King's side-loading gate and a wooden forearm to Henry's basic design, and it sold like nothing the company had ever produced.

The Winchester 1873 followed, switching to a steel frame and the .44-40 centerfire cartridge. It became "The Gun That Won the West" — arguably the most iconic lever-action rifle ever manufactured, and the first repeating rifle that major ammunition companies would chamber revolvers to match. Colt eventually offered the Single Action Army in .44-40 specifically so a cowboy could carry one cartridge for both his rifle and his sidearm. The 1873 was that influential.

The Model 1876 — the "Centennial Model," debuted at the Philadelphia Centennial Exposition — scaled the toggle-link action up for more powerful cartridges like the .45-75 Winchester, which threw a 350-grain bullet at roughly twice the energy of the .44-40. Theodore Roosevelt carried an 1876 on his Dakota Territory ranch. But the 1876 had reached the toggle-link's ceiling. The action simply couldn't handle the full-power rifle cartridges — the .45-70 Government, the .45-90, the big Sharps rounds — that hunters and the military demanded.

Enter John Moses Browning. In 1883, Winchester's representatives traveled to Ogden, Utah, to meet a young gunsmith whose single-shot rifle design had caught their attention. That meeting launched one of the most productive partnerships in firearms history. Browning's first lever-action design for Winchester was the Model 1886, which replaced the toggle-link with a pair of vertically sliding locking lugs — inspired by falling-block single-shot actions — that sealed the breech bolt firmly enough to handle the .45-70, the .45-90, the .50-110 Express, and every other big-bore cartridge of the black-powder era. The 1886 was the first lever-action rifle that could stand alongside a Sharps or a Remington rolling block in raw power. Winchester finally had a rifle that could do everything.

Browning went on to design the Model 1892, the Model 1894 (still in production and one of the best-selling sporting rifles in history), and the Model 1895. But every one of those lever-action Winchesters — from the 1866 Yellow Boy through the 1876 — used a direct descendant of the mechanism that Horace Smith and Daniel Wesson had developed for the Volcanic pistol. The toggle-link action that couldn't do justice to a Rocket Ball turned out to be one of the most successful firearms mechanisms in American history once someone gave it proper ammunition.

The Guns Today: Rarity and Collector Value

Surviving Volcanic pistol and rifle specimens are genuinely rare. Total production across all manufacturers — Smith & Wesson in Norwich, Volcanic Repeating Arms in New Haven, and New Haven Arms Company — amounted to only a few thousand units total. The Volcanic Repeating Arms Company itself produced an estimated 2,000 to 3,000 guns across all models during its brief 1855-1857 existence. Serial numbers ran sequentially without regard to model type — a pocket pistol might be serial number 32 and the next gun off the line, a 16-inch carbine, serial number 33.

An interesting footnote: many New Haven Arms-produced Navy pistols were never sold during the Civil War era. They sat in the factory for decades and were eventually acquired by Winchester factory workers in the twentieth century, which explains why some late-production examples turn up in surprisingly good condition.

At auction, a Volcanic pistol commands serious money. A factory-engraved New Haven Arms Company Volcanic No. 2 Navy pistol sold through Rock Island Auction in December 2024 for $44,063. A Volcanic Repeating Arms Company-marked No. 2 Navy brought $12,925 at Rock Island in February 2025. The general range runs $10,000 to $50,000 or more, depending on which manufacturer's marks appear on the gun (S&W Norwich pieces are the rarest, followed by Volcanic-marked, then New Haven Arms), the model, condition, whether factory engraving is present, and provenance.

If you want to see them without the five-figure price tag, the Cody Firearms Museum holds the most comprehensive collection of the entire Winchester lineage, from Hunt prototypes through Jennings, Volcanic, and Henry to every Winchester model. The NRA National Firearms Museum in Fairfax, Virginia also has Volcanic examples in its collection.

The Real Legacy

Step back and look at what happened here. A New York inventor designed an unworkable rifle with underpowered ammunition in 1848. A series of mechanics and businessmen tried to make it viable over the next decade, failing commercially at every turn. The company that built the Volcanic pistol lasted barely two years before going bankrupt.

And from that wreckage came Winchester Repeating Arms and Smith & Wesson — two companies that would define American firearms manufacturing for the next century and a half. The same venture, the same patents, the same shop in New Haven. One failed company produced two of the most storied names in the history of guns.

The Volcanic pistol was the first practical repeating handgun with a lever action and tubular magazine. It fired the first self-contained cartridge ever used in a repeating arm. Its toggle-link action powered thirty-plus years of lever-action rifles. It proved that the concept of a repeating firearm with self-contained ammunition was sound — even though the ammunition itself was not.

Sometimes the most important inventions are the ones that fail. The Volcanic pistol couldn't kill a rabbit at twenty paces, but it gave birth to the guns that won the West and the revolvers that armed American law enforcement for a century. That's not a bad legacy for a bankrupt pistol company with bullets that barely worked.
